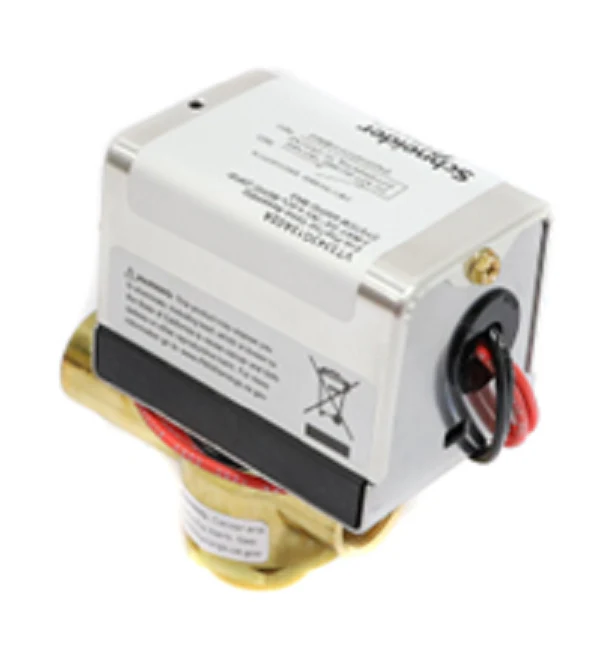

Schneider Electric (Erie) VT3343G13A02A Valve Assembly
The Schneider Electric Erie VT3343G13A02A is a robust 3-way hydronic zone valve engineered for high-performance climate control in commercial and residential HVAC systems. Designed as a two-position zone valve, this assembly features a 3/4-inch inverted flare connection, making it an ideal choice for retrofit HVAC valve applications where maintaining existing piping geometry is critical. Operating on 24Vac, the integrated spring return actuator ensures a fail-safe closed position during power loss, while the built-in end switch allows for seamless integration with circular pumps or boiler controllers. With a 4.0 Cv flow coefficient, this low pressure steam valve and hot/chilled water solution maintains precise flow control with minimal pressure drop. The PopTop actuator design simplifies field installation, allowing for quick "snap-on" mounting without tools, which reduces labor time for contractors managing large-scale zone valve replacement projects.
Key Technical Benefits
- High Flow Capacity: Features a 4.0 Cv rating to handle significant flow rates in demanding hydronic loops.
- Fail-Safe Operation: Mechanical spring return mechanism ensures the valve returns to its home position if power is interrupted.
- Simplified Integration: Includes an auxiliary end switch to signal the boiler or pump when the valve is fully open.
- Standardized Geometry: The 3/4" inverted flare configuration allows for direct drop-in replacement in many legacy fan coil units.
- Reliable Actuation: The 24Vac synchronous motor is designed for long-cycle life in on/off hydronic control environments.
Common Technical Questions
What is the maximum fluid temperature rating for this valve?
This Erie PopTop valve is rated for fluid temperatures ranging from 32°F to 200°F (0°C to 93°C), making it suitable for both chilled water and hot water systems.
Does this assembly include the actuator and the valve body?
Yes, the VT3343G13A02A is a complete assembly, including both the 3-way valve body and the compatible electric actuator.
How do I wire the end switch for a boiler call?
The auxiliary end switch provides a dry contact closure when the valve reaches the fully open position; typically, the black/yellow or gray leads are used to complete the 24V circuit to your controller.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
