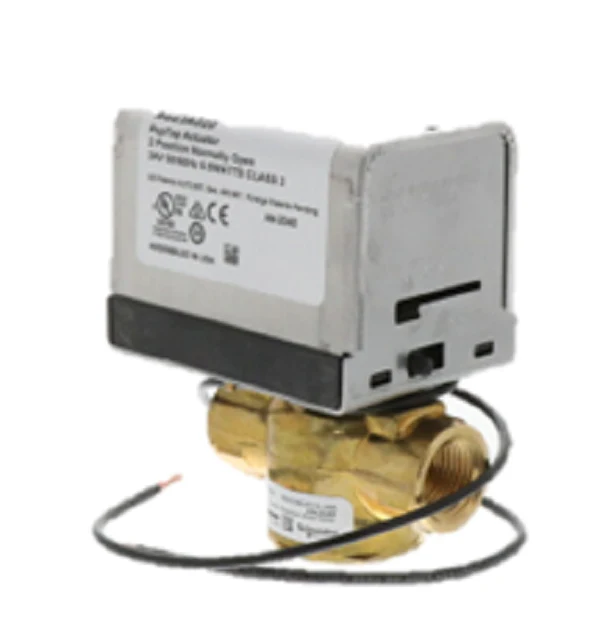

Schneider Electric (Erie) VT2223G23A020 Valve Assembly
The Schneider Electric (Erie) VT2223G23A020 Valve Assembly is a contractor-grade solution for reliable hydronic heat and chilled water control in HVAC systems. This 2-way normally open zone valve is engineered for two-position setpoints where maintaining flow upon loss of power is critical for freeze protection or bypass requirements. The assembly features a 1/2" NPT connection and a 3.5 Cv flow coefficient, making it a standard choice for fan coils, baseboards, and air handlers. Built with a forged brass body and a nickel-plated stem, the VT series utilizes a 24Vac spring return mechanism with the Erie PopTop actuator, allowing for quick, tool-free head replacement without draining the system. This spring return normally open valve provides a fail-safe open position, ensuring maximum system safety during electrical outages. Every component, from the high-torque hysteresis motor to the Bunn N paddle, is designed for high-duty cycle applications in closed-loop systems with up to 50% glycol concentration.
Key Benefits- PopTop Actuator Design: Features a one-handed removal process for fast actuator swaps without needing to break the piping, significantly reducing labor time for service calls.
- Fail-Safe 2-Way Normally Open Operation: Automatically returns the valve to the open position on power loss, preventing stagnant loops or frozen pipes in critical zones.
- Durable Construction: Rated for a static pressure of 400 psi and a close-off pressure of 25 psi, ensuring reliable performance in both residential and light commercial hydronic applications.
- Synchronous Motor: The high-efficiency motor provides consistent timing and longevity for frequent-cycling heating and cooling manifolds.
Can the VT2223G23A020 be used in steam applications?
No, this specific general-purpose model is rated for hot and chilled water up to 200°F. For 15 psi steam applications, the VS series with suitable high-temperature actuators must be specified.
Do I need tools to replace the actuator on this valve?
No tools are required for the Erie PopTop system. A single release button allows you to remove the electric head from the 1/2" NPT valve body while the system remains pressurized.
What is the difference between this and a normally closed valve in a power failure?
In a power-outage scenario, this normally open assembly will spring to the fully open position. A normally closed valve would shut off flow entirely, which could be risky in climates requiring constant hydronic circulation to prevent line freezing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
