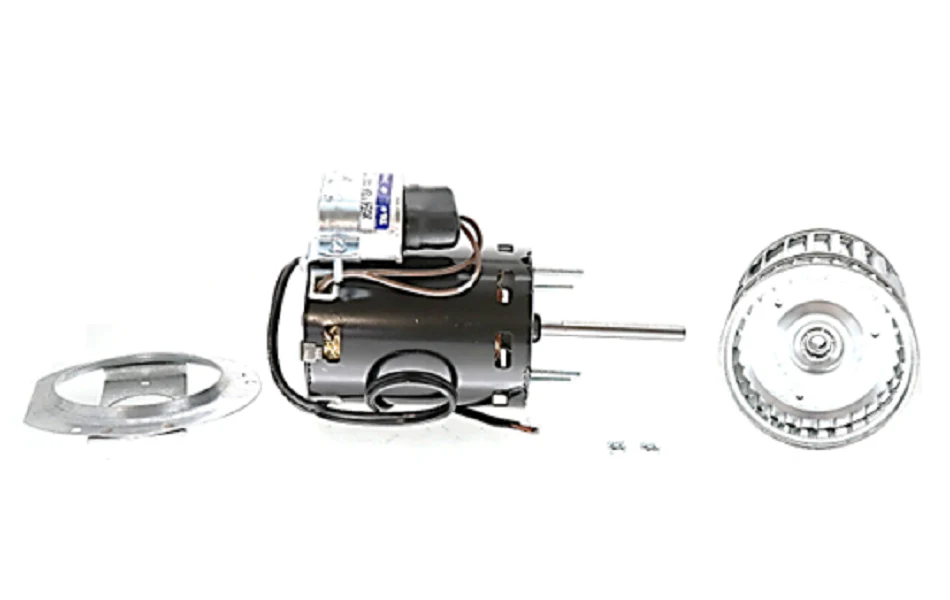

Reznor 71532 Motor & Wheel
Ensure critical combustion cycle reliability with the Reznor 71532 Ventor Motor & Wheel assembly, a high-performance OEM solution engineered for specific Reznor unit heater and duct furnace models including the UDAP, UDBP, and UDBS 200-250 series. This heavy-duty draft inducer assembly features a precision-balanced 1/6 HP PSC motor designed to operate at 3200 RPM on standard 115V/60Hz/1Ph power, drawing 1.70A. The integrated 7.25-inch diameter motor plate and 6.25-inch blower wheel facilitate rapid evacuation of flue gases, preventing pressure switch trips and ensuring safe burner ignition. Built for the rigors of commercial and industrial heating, this venter motor replacement includes automatic thermal overload protection and an open air-over (OAO) enclosure to manage heat dissipation during long run cycles. When you are on a "no-heat" call and find a seized inducer or a cracked wheel, this genuine HVAC combustion blower delivers the exact airflow and static pressure required to restore optimal equipment performance and maintain high-efficiency standards.
Key Benefits:- Direct OEM Compatibility: Verified fit for Reznor models UDAP, UDBP, and UDBS 200-250, eliminating the need for field modifications or bracket fabrication.
- High-Torque Performance: The 3200 RPM motor ensures consistent static pressure, vital for proper venting in power-vented units.
- Industrial Build Quality: Features a 3.3-frame PSC motor with premium bearings and automatic thermal protection to resist premature failure in high-temp environments.
- Simplified Installation: Comes as a complete assembly including the motor, wheel, and mounting plate for faster technical turnover on-site.
- Operational Reliability: Precision-balanced components reduce vibration and noise, extending the life of the heat exchanger by maintaining specified airflow.
What are the symptoms of a failing Reznor 71532 assembly?
Technicians typically encounter high-pitched squealing from worn bearings, a humming motor that fails to rotate, or persistent pressure switch errors (often 3 flashes on the control board) caused by inadequate RPM or wheel obstructions.
Does this assembly include the capacitor?
The motor is designed for use with a 7.5 MFD/370V capacitor. While some kits may vary, standard practice is to verify the capacitor rating on the motor label or utilize the existing run capacitor if it bench-tests within ±5% of the rated microfarads.
Can I use this motor on 208V or 230V systems?
No. This specific assembly is rated for 115V/1Ph operation. Running a 115V motor on 208V or higher will lead to immediate winding failure and is a fire hazard.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
