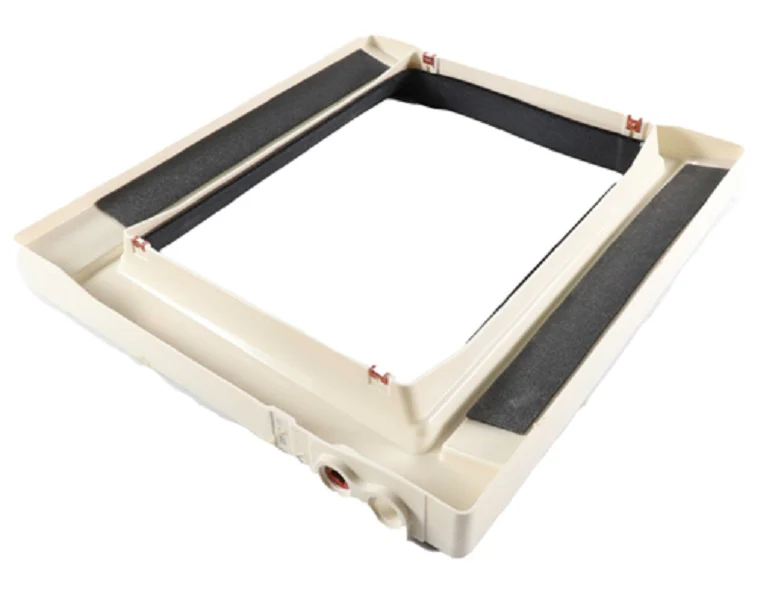

Lennox 15V97 Drain Pan
The Lennox 15V97 (also identified by part number LB-90788F) is a critical OEM replacement upflow drain pan designed for high-performance condensate management in specific Lennox evaporator coil configurations. Engineered from high-impact, corrosion-resistant plastic, this vertical drain pan is built to withstand the constant thermal cycling and moisture exposure inherent in residential and light commercial cooling cycles. With dimensions of approximately 21.45 x 19.55 x 2.19 inches, this component ensures precise fitment within the cabinet, preventing moisture bypass that can lead to structural damage and mold growth.
For technicians performing a condensate system repair, the 15V97 replaces previous part number 105142-01. It features standard 3/4 inch NPT threaded connections for seamless integration with existing primary and secondary drain lines. Utilizing genuine Lennox parts like this 5.77 lb pan maintains the system's factory-rated airflow integrity and drainage efficiency. Always verify that primary and secondary drain plugs are properly configured and hand-tightened with appropriate thread sealant to avoid stress fractures during installation.
Key Benefits- Optimized Upflow Design: Specifically contoured for vertical air discharge systems to maximize water collection and prevent overflow.
- High-Impact Construction: Durable plastic material resists the corrosive effects of localized moisture and chemical biological growth.
- Direct OEM Specification: Ensures exact compatibility with Lennox LB-90788F and legacy 105142-01 assemblies for a reliable "drop-in" replacement.
- Dual Drainage Ports: Accommodates both primary and secondary (emergency) drain lines to meet local building codes and safety standards.
- What are the exact dimensions of the 15V97? The pan measures 21.45 inches in length, 19.55 inches in width, and has a depth of 2.19 inches.
- Is this pan compatible with horizontal installations? No, the 15V97 is an upflow drain pan; horizontal or downflow applications typically require different catalog numbers or conversion kits.
- What fittings are required for the drain ports? The pan uses standard 3/4" NPT fittings. Technicians should hand-tighten these and use a suitable thread sealant to ensure a leak-proof seal without cracking the plastic housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
