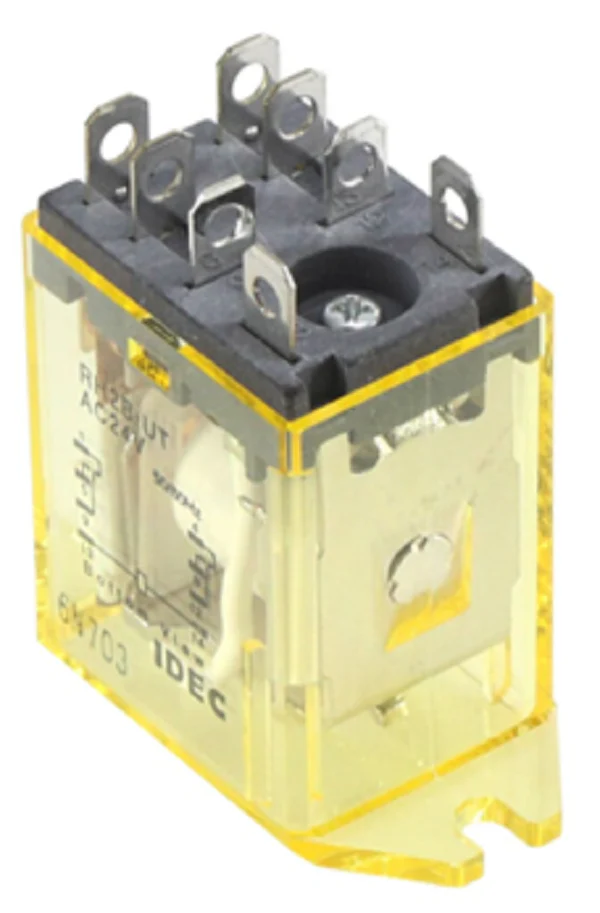

Laars Heating Systems RE2327800 Relay
The Laars Heating Systems RE2327800 Relay is a specialized 24V coil ice cube relay designed for reliable circuit switching in high-efficiency hydronic systems. Featuring a DPDT (Double Pole Double Throw) configuration, this 24VAC relay provides the versatile switching logic required for Laars boiler parts integration, including pump interlocking and limit control sequences. As a veteran-grade HVAC general purpose relay, the RE2327800 is engineered to handle inductive loads without premature contact pitting, ensuring consistent performance in demanding residential and commercial heating environments. Use this plug-in style relay for seamless field replacement in Laars Logic Systems and other control panels requiring a 24-volt trigger. Its compact, transparent housing allows for immediate visual inspection of the armature and contact state, a critical feature for rapid troubleshooting during peak service seasons.
Key Benefits:- DPDT Switching Logic: Provides two independent sets of contacts for managing multiple load circuits from a single 24V signal.
- Compact Ice Cube Design: Standardized form factor fits most 8-pin or flange-mount sockets for fast HVAC relay replacement.
- Industrial-Grade Contacts: Built to withstand the high-cycle demands of boiler control boards and pump sequencers.
- Visual Diagnostics: Clear "ice cube" casing enables technicians to verify mechanical operation and contact health at a glance.
- Precision 24V Coil: Optimized for low-voltage control circuits to prevent "chatter" and ensure stable engagement.
- Is this relay compatible with older Teledyne Laars systems? Yes, the RE2327800 serves as a direct replacement for various legacy parts, including the E2327800, maintaining original wiring specifications.
- Can I use this for both normally open and normally closed applications? Absolutely. The DPDT configuration offers both NO and NC terminals for flexible field wiring.
- What is the typical coil resistance for this 24V model? You should typically see a resistance of approximately 70-170 ohms across the coil, depending on the specific manufacturing batch, when testing with a multimeter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
