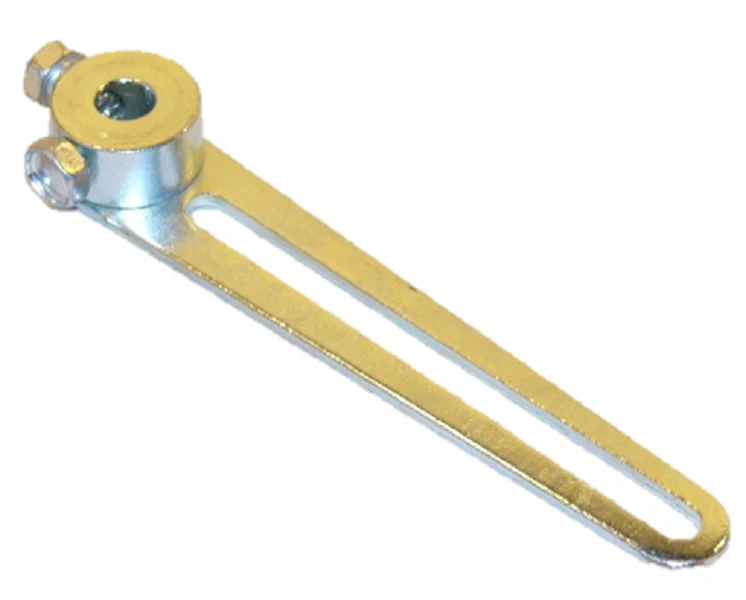

KMC Controls VTD-1406 Crankarm
The KMC Controls VTD-1406 is a heavy-duty, long-slotted damper crankarm designed specifically for 3/8-inch diameter shafts in commercial HVAC systems. For technicians managing linkage assemblies, this actuator accessory provides the extended reach necessary for complex damper configurations, featuring a slotted design that allows for a maximum ball joint adjustment of 4-5/8 inches from the center of the shaft. Built with high-grade materials, the VTD-1406 crankarm ensures precise airflow modulation and dependable mechanical advantage when interfacing with KMC MCP-8031 pneumatic actuators or similar drive units. Its robust construction is ideal for ceiling plenum installations and high-demand damper linkage environments where standard-length arms fail to provide sufficient stroke. By utilizing this HVAC actuator part, contractors can ensure exact unit ventilator control and consistent dampering performance across the entire building automation system. This long-slotted version is essential for field retrofits requiring specific torque-to-angle ratios.
- Shaft Compatibility: Precision-engineered for 3/8" diameter shafts, ensuring a secure, non-slip fit for critical HVAC damper control.
- Extended Adjustment Range: The long-slotted crank arm provides an adjustable stroke radius up to 4-5/8", accommodating diverse mechanical linkage requirements.
- Industrial Durability: Engineered to withstand the rigors of pneumatic actuator applications and high-cycle airflow modulation.
- Versatile Application: Ideal for use in VAV terminals, air handling units, and ductwork where precise damper positioning is required.
Common Questions
What is the maximum adjustment length for the VTD-1406?
The KMC Controls VTD-1406 is a long-slotted model allowing a ball joint to be positioned up to 4-5/8 inches from the shaft center, providing more leverage and travel than shorter variants.
Will this work with 1/2-inch shafts?
No, this specific model is sized exclusively for 3/8-inch shafts. If you are working with 1/2-inch shafts, you will need the VTD-1405 or VTD-1404 series.
Is this part suitable for pneumatic actuators?
Yes, it is commonly paired with KMC pneumatic series actuators for damper linkage in commercial air systems and terminal units.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
