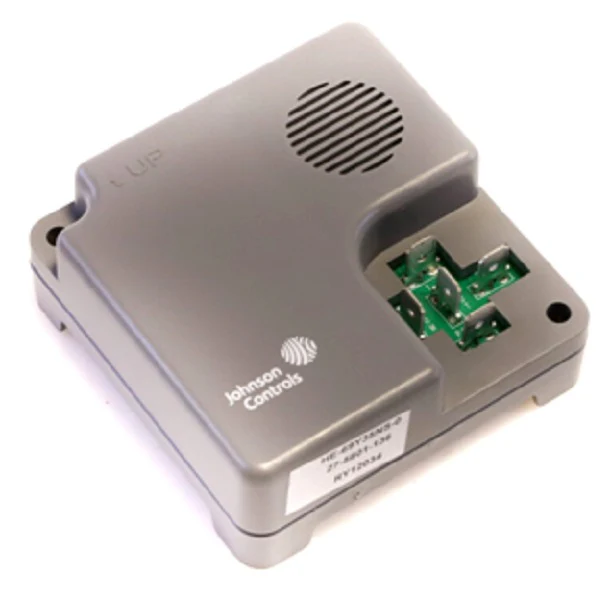

Johnson Controls HE-69Y3-5NS0 Humid.
The Johnson Controls HE-69Y3-5NS0 is a high-performance 10k ohm Type III thermistor humidity and temperature sensor designed for precise environmental monitoring. Engineering for a duct surface mount configuration, this grey-enclosure unit is the 025-36433-001 direct cross replacement for legacy systems. It provides a proportional 0 to 5 VDC output for relative humidity, ensuring ?3% RH accuracy across a wide operating range. Built for HVAC economizer control and rooftop unit (RTU) applications, it allows technicians to calculate enthalpy accurately and maintain ASHRAE ventilation standards. The all-plastic enclosure features a protective membrane to shield internal sensing elements from duct-borne contaminants, while the two-screw quick-mount design significantly reduces installation time for field contractors. With a power requirement of 14 to 30 VDC or 20 to 30 VAC, this versatile transmitter is a reliable standard for industrial building automation.
Key Benefits:- Dual Sensing Capability: Combines humidity and 10,000 ohm temperature sensing in a single housing, reducing wiring complexity and labor costs.
- High Accuracy Performance: Delivers ?3% RH precision between 20% and 80% RH, essential for sensitive environmental control.
- Direct Cross Reference: Perfectly replaces York/Johnson Controls 025-36433-001 without requiring additional mounting brackets or modifications.
- Robust Field Reliability: Features a protective membrane that prevents sensor drift caused by dust and humidity saturation in high-airflow ducts.
- Flexible Output Signal: Provides a 0 to 5 VDC humidity signal, making it compatible with a broad range of building management systems (BMS) and economizer controllers.
- What is the resistance curve for this sensor? The HE-69Y3-5NS0 uses a 10k ohm Type III thermistor for temperature measurement.
- Can this be used in outdoor rooftop units? Yes, the compact grey enclosure is specifically designed for surface mounting inside ducts and economizer rooftop systems.
- What are the wiring requirements for this transmitter? It features 1/4 inch external spade terminals and is compatible with 16 to 24 AWG wire (18 AWG highly recommended).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
