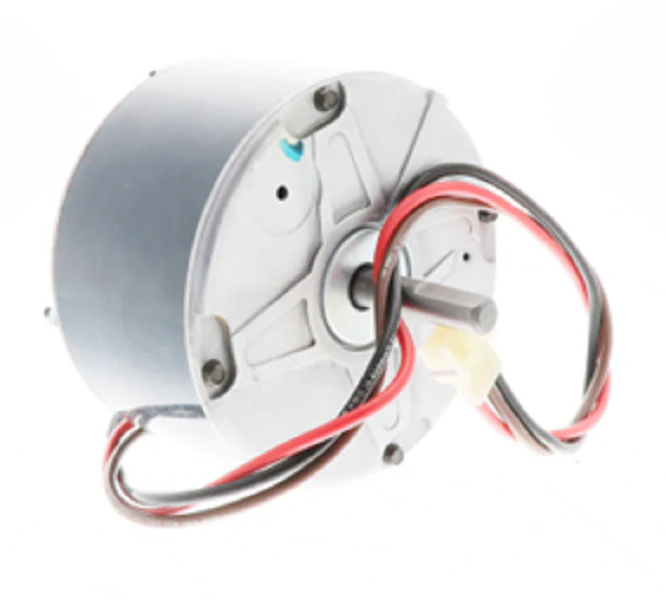

Heil Quaker ICP 1172576 Motor
The Heil Quaker ICP 1172576 Motor is a high-performance 1/5 HP condenser fan motor designed for critical cooling applications in residential and light commercial HVACR systems. Operating at 208-230V and a nominal 1075 RPM, this single-phase permanent split capacitor (PSC) motor is engineered for efficiency and thermal stability. This 48 NEMA frame size unit features a 1.3 Amp draw and a clockwise (CW) rotation, making it a drop-in replacement for a wide range of International Comfort Products (ICP) equipment, including Heil, Tempstar, and Comfortmaker condenser units. Built with sleeve bearings for quiet operation and a versatile band/thru-bolt mount, it ensures a secure fit in high-vibration environments. For optimal system protection, verify the microfarad (MFD) rating of your existing capacitor, as a matched run capacitor is essential for maintaining torque and preventing winding failure.
Key Benefits- Universal Mounting: The 48-frame design supports both band and thru-bolt configurations for seamless installation in ICP condenser units.
- Optimized Heat Dissipation: The 1075 RPM single-speed output is calibrated to move maximum CFM across condenser coils, ensuring proper refrigerant subcooling.
- Direct OEM Compatibility: Specifically engineered to replace ICP 1172576 and related 5KCP39BGY231S models without field modification.
- Reliable Sleeve Bearings: Provides a low-friction, quiet alternative to ball bearings in standard vertical-shaft applications.
What capacitor does this motor require?
This motor typically requires a 3 MFD / 370V or 5 MFD / 370V run capacitor depending on the specific revision; always check the nameplate on the original 1172576 motor to ensure the correct phase shift.
Can I use this to replace a 1/6 HP motor?
Yes, a 1/5 HP motor can replace a 1/6 HP motor as long as the voltage (208-230V), RPM (1075), and rotation (CW) match, as it provides sufficient torque for the existing fan blade pitch.
Is the rotation reversible?
No, this specific model is hard-wired for clockwise (CW) rotation leads. Verify your fan blade pitch (CW/RH) before installation to ensure proper airflow direction.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $325.82
-65%$325.82
$114.04Heil Quaker ICP 1172576 Motor
The Heil Quaker ICP 1172576 Motor is a high-performance 1/5 HP condenser fan motor designed for critical cooling applications in residential and light commercial HVACR systems. Operating at 208-230V and a nominal 1075 RPM, this single-phase permanent split capacitor (PSC) motor is engineered for efficiency and thermal stability. This 48 NEMA frame size unit features a 1.3 Amp draw and a clockwise (CW) rotation, making it a drop-in replacement for a wide range of International Comfort Products (ICP) equipment, including Heil, Tempstar, and Comfortmaker condenser units. Built with sleeve bearings for quiet operation and a versatile band/thru-bolt mount, it ensures a secure fit in high-vibration environments. For optimal system protection, verify the microfarad (MFD) rating of your existing capacitor, as a matched run capacitor is essential for maintaining torque and preventing winding failure.
Key Benefits- Universal Mounting: The 48-frame design supports both band and thru-bolt configurations for seamless installation in ICP condenser units.
- Optimized Heat Dissipation: The 1075 RPM single-speed output is calibrated to move maximum CFM across condenser coils, ensuring proper refrigerant subcooling.
- Direct OEM Compatibility: Specifically engineered to replace ICP 1172576 and related 5KCP39BGY231S models without field modification.
- Reliable Sleeve Bearings: Provides a low-friction, quiet alternative to ball bearings in standard vertical-shaft applications.
What capacitor does this motor require?
This motor typically requires a 3 MFD / 370V or 5 MFD / 370V run capacitor depending on the specific revision; always check the nameplate on the original 1172576 motor to ensure the correct phase shift.
Can I use this to replace a 1/6 HP motor?
Yes, a 1/5 HP motor can replace a 1/6 HP motor as long as the voltage (208-230V), RPM (1075), and rotation (CW) match, as it provides sufficient torque for the existing fan blade pitch.
Is the rotation reversible?
No, this specific model is hard-wired for clockwise (CW) rotation leads. Verify your fan blade pitch (CW/RH) before installation to ensure proper airflow direction.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
