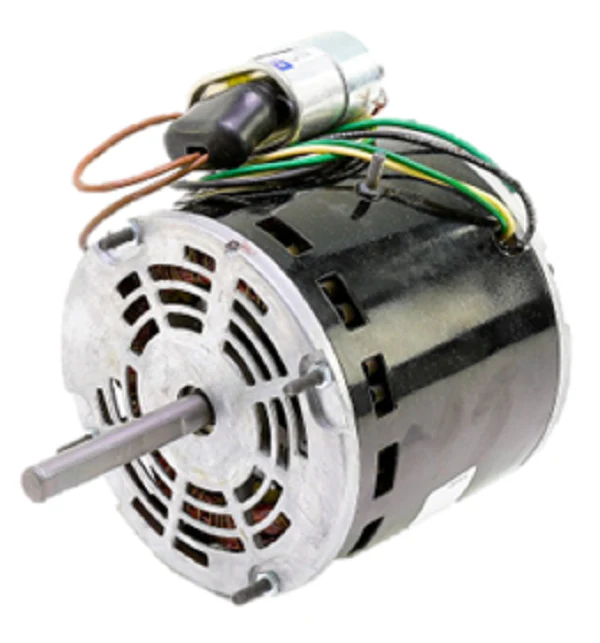

Field Controls 46124300 Motor
The Field Controls 46124300 Replacement Motor is a heavy-duty, single-speed power unit engineered specifically for the DI-3 Draft Inducer series. Operating at 115V with a robust 1/3 HP rating, this motor maintains a steady 1725 RPM to ensure consistent venting and proper combustion air delivery. Built with an open-vented design for effective heat dissipation, it utilizes a permanent split capacitor (PSC) configuration to balance energy efficiency with the high starting torque required for inducer fan loads. This OEM substitute motor serves as a critical component for maintaining the static pressure required to exhaust flue gases safely through chimney or vent systems. For contractors, the 46124300 offers a drop-in bolt-pattern match, eliminating field modifications and reducing downtime during emergency service calls.
Key Benefits for HVAC Professionals:
- Industrial-Grade Reliability: 1/3 HP motor delivers reliable performance for high-static draft inducer applications.
- Optimized Performance: Operates at 1725 RPM to meet the specific airflow curve requirements of the Field Controls DI-3.
- Direct Fitment: Genuine Field Controls replacement part ensures the shaft diameter and mounting holes align perfectly with the DI-3 blower wheel and housing.
- Electrical Efficiency: Standard 115V operation allows for seamless integration with existing furnace or boiler control boards.
Common Questions & Technical Support:
Is the 46124300 motor compatible with the DI-1 or DI-2 models?
No, this specific motor is rated at 1/3 HP and 1725 RPM, which is calibrated for the DI-3 model. Using it on smaller inducer housings may lead to improper venting or motor over-amping.
Does this motor include the fan blade or mounting hardware?
This is the replacement motor only. It is recommended to inspect the DI-3 blower wheel and housing gaskets separately to ensure the entire venting assembly is airtight upon reinstallation.
What are the symptoms of a failing Field Controls inducer motor?
Common indicators include high-pitched bearing squealing, failure to activate the pressure switch, or a "tripped" thermal overload due to excessive heat build-up or shaft binding.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
