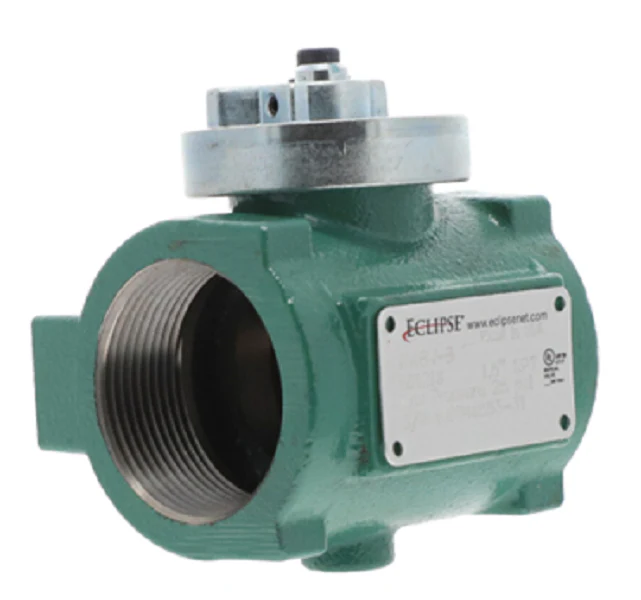

Eclipse 501218 Valve
The Eclipse 501218 Valve, also identified as the Honeywell Eclipse 106BV-B, is a 1.5-inch NPT butterfly valve engineered specifically for the precise combustion system air flow control and gas regulation required in industrial HVACR applications. Built with a rugged powder-coated cast iron body and a zinc-plated steel shaft, this manual full-port valve utilizes a beveled disc with a 75-degree rotation to manage low-pressure drop performance across chilled water loops and air handling units. With a Cv flow coefficient of 111, it supports a flow capacity ranging from 3,489 to 13,834 SCFH, making it a staple for contractors prioritizing industrial butterfly valve reliability. The compact design includes a locking screw on the adjusting cover to secure the disk position, ensuring steady operation in tight mechanical spaces. Note that as a manual butterfly valve, it is intended for throttling and flow regulation rather than tight shut-off service. This component is essential for maintaining HVAC fluid regulation efficiency and high-response control within professional combustion environments.
Key Benefits- Optimized Flow Control: High Cv flow coefficient and beveled disc design minimize turbulence and pressure drop.
- Durable Construction: Features a cast iron body and Buna-N shaft packing for long-term resilience in industrial HVACR settings.
- Precision Adjustment: Includes an integrated indicator plate and locking screw for reliable, non-slip manual positioning.
- Broad Compatibility: Standard 1.5" NPT connection integrates seamlessly into existing gas and air piping systems.
Can the Eclipse 501218 be used as a primary shut-off valve?
No, this 1.5 inch butterfly valve is designed for flow regulation and throttling within combustion systems; it is not rated for tight shut-off applications.
What are the maximum pressure and temperature ratings for this valve?
The manual Eclipse butterfly valve is rated for a maximum operating pressure of 5 psig and an operating temperature range of -40°F to 140°F.
Is this valve compatible with automatic actuators?
While this specific model is a manual control valve, the shaft design on the Honeywell Eclipse 106BV-B series often allows for field-conversion or integration with specific electric operators and mounting kits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
